Description
حقيبة تعبئة التجميع - IR - موديل - 4 × 5 ESV NL
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - حقيبة تعبئة التجميع - IR - موديل - 4 × 5 ESV NL - ESV4X5NL10 - Model for Ingersoll Rand ESV Parts from India

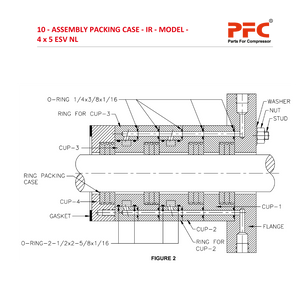

ASSEMBLY PACKING CASE - MODEL - 4 x 5 ESV NL
Sr.No | Description | Ref Part Nos | Qty |
– | . ASSEMBLY PKG & RINGS 5X7, 7X7 | 42428060 | – |
– | . . PACKING CASE WATER COOLED 4 CUPS | 42431791 | – |
– | . . . FLANGE PACKING CASE,1.5 PISTON ROD | 70332242 | 1 |
– | . . . CUP -2 OR 3 FOR PACKING CASE | 70332176 | 1 |
– | . . . CUP PACKING (CUP-1) | 70332218 | 1 |
– | . . . RING FOR CUP - 2 | 70332200 | 1 |
– | . . . CUP -2 OR 3 FOR PACKING CASE | 70332176 | 1 |
– | . . . RING FOR CUP - 3 | 70332184 | 1 |
– | . . . CUP PACKING (CUP-4) | 70332168 | 1 |
– | . . . O-RING 1/4 X 3/8 X 1/16 | 95022802 | 10 |
– | . . . O-RING 2-1/2 X 2-5/8 X 42370 | 95024139 | 4 |
– | . . . STUD PACKING CASE 1/4 X 6-5/8 | 70333836 | 2 |
– | . . . NUT HEX 1/4 UNC -16A4C1 | 2 | |
– | . . . WASHER LOCK 1/4 | 2 | |
– | . . GASKET PACKING CASE | 1 | |
– | . . RING PACKING SET PHE-7 NL | 39321245IM | 4 |
– | . . PLUG PIPE SQ.HD.3/4"NPT CS BLACK | 95002143 | 1 |
– | . . REDUCER BUSHING 3/4" X 1/4" NPT | 95002085 | 1 |
