Description
التحكم المستمر في السرعة أجزاء الضاغط IR 7T2
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - التحكم المستمر في السرعة أجزاء الضاغط IR 7T2 - 7T206 - Model for Ingersoll Rand Type 30 Parts from India

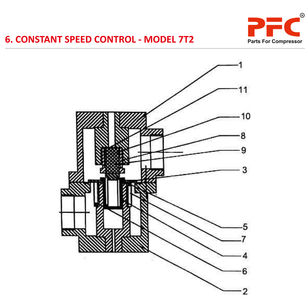

Constant Speed Control
Sr.No | Ref. Part Number | Description | Qty |
6-0 | 30210686 | Constant Speed Control Assembly | 1 |
6-1 | 97052401 | – Body Top Csc | 1 |
6-2 | 97052385 | – Body Bottom Csc | 1 |
6-3 | – Plate Unloader Valve | 1 | |
6-4 | 30285696 | – Cap Spring Inner | 1 |
6-5 | 30220834 | – Washer-Inner Spring | 1 |
6-6 | 30672091 | – Spring Csc - PP 597 Inner | 1 |
6-7 | 30672109 | – Spring Csc - PP Outer | 1 |
6-8 | 30298152 | – Unloader Cylinder | 1 |
6-9 | – Unloader Piston | 1 | |
6-10 | 95018073 | – O Ring | 1 |
6-11 | 30346613 | – Washer Copper | 1 |
6-12 | – Cap Screw 3/8" X 1" HT | 4 | |
6-13 | 30345227 | – Washer Flat 3/8" | 4 |
6-14 | 95056511 | Nipple 1-1/2" NPT | 1 |
6-15 | Elbow 5/16" Tube X 1/8" NPT | 1 |
