أجزاء ضاغط الهواء LP Valve IR 2540
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - أجزاء ضاغط الهواء LP Valve IR 2540 - 254004 - Model for Ingersoll Rand Type 30 Parts from India

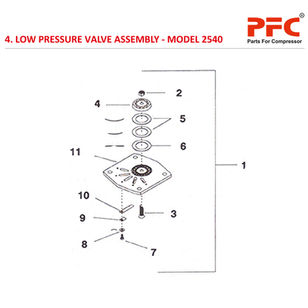

LOW PRESSURE VALVE ASSEMBLY
REF. NBR. | PART NO. | DESCRIPTION | QTY |
4-1 | Assembly, Valve - Low Pressure | 1 | |
4-2 | – Nut, Whiz-Lock - 7/16-14 Hex | 1 | |
4-3 | – Bolt, Discharge Valve | 1 | |
4-4 | – Plate, Stop | 1 | |
4-5 | – Spring, Discharge Valve | 2 | |
4-6 | – Plate, Discharge Valve | 1 | |
4-7 | – Screw, Fillister Head 1/4-20 X 3/8" | 5 | |
4-8 | – Washer, Belleville - 1/4" | 5 | |
4-9 | – Retainer, Finger Valve | 5 | |
4-10 | – Valve, Finger | 5 | |
4-11 | – Plate, Seat - Low Pressure | 1 |
