Description
Kit de révision 32319493 IR 3000
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Kit de révision 32319493 IR 3000 - 32319493 - Model for Ingersoll Rand Type 30 Parts from India

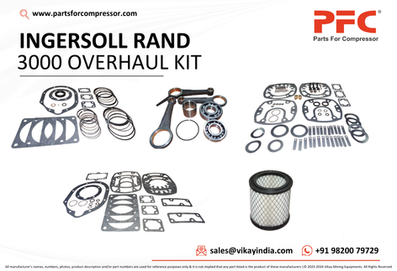

Overhaul Kit 32319493 IR 3000 Replacement
Contain of Kit
No. | Description | Part No. | QTY |
A | Bearing/Conn Rod Kit | -- | |
– Crankpin Bushing | 1 | ||
– L/P Connecting Rod | 2 | ||
– H/P Connecting Rod | 32262438 | 1 | |
– Ball Bearing | 1 | ||
– Bearing W/Snap Ring | 95951273 | 1 | |
B | Valve/Gasket Kit | -- | |
– Finger Valve | 23 | ||
– Discharge Valve Plate | 2 | ||
– Discharge Valve Plate | 1 | ||
– Discharge Valve Spring | 2 | ||
– Discharge Valve Spring | 4 | ||
– Valve Bolt | 3 | ||
– Valve Retainer | 5 | ||
– L/P Head Gasket (Disch.) | 32153801 | 2 | |
– L/P Head Gasket (Inlet) | 32153827 | 1 | |
– L/P Airhead Gasket | 2 | ||
– L/P Valve Plate Gasket | 2 | ||
– Unloader Piston Seal | 32254740 | 2 | |
– Unloader Piston “O” Ring | 32188385 | 2 | |
– “O” Ring | 95026183 | 2 | |
– “O” Ring | 95935862 | 2 | |
– Elbow | 2 | ||
– Hex Nut | 1 | ||
– Lock Washer | 95648150 | 1 | |
– Whiz-Lock Nut | 3 | ||
– Fillister Head Screw | 22 | ||
– Washer | 23 | ||
– Fillister Head Screw | 1 | ||
– Lock Nut | 2 | ||
– H/P Upgrade Kit (C1) | 32254708 | -- | |
– L/P Head Gasket (Inlet) | 32153827 | 1 | |
– H/P Airhead Gasket | 1 | ||
– H/P Spacer Plate Gasket | 2 | ||
– H/P Valve Plate Gasket | 1 | ||
– Flat Washer | 32279408 | 6 | |
– Hex Cap Washer | 6 | ||
C | Ring/Gasket Set | -- | |
– H/P Ring Set | 1 | ||
– L/P Ring Set | 2 | ||
– Oil Seal | 2 | ||
– Cylinder Flange Gasket | 32221384 | 3 | |
– Frame End Cover Gasket | 1 | ||
– Shaft End Cover Gasket | 1 | ||
– L/P Head Gasket (Disch.) | 32153801 | 2 | |
– H/P Head Gasket (Inlet) | 32153827 | 1 | |
– “O” Ring | 1 | ||
– Oil Filler Plug “O”Ring | 1 | ||
– Copper Gasket | 95674750 | 1 | |
D | Gasket Set | -- | |
– “O” Ring | 1 | ||
– “O” Ring | 95026183 | 2 | |
– “O” Ring | 1 | ||
– “O” Ring | 95935862 | 2 | |
– Unloader Piston “O” Ring | 32188385 | 2 | |
– L/P Airhead Gasket | 2 | ||
– L/P Valve Plate Gasket | 2 | ||
– Cylinder Flange Gasket | 32160558 | 2 | |
– HP Cylinder Flange Gasket | 32160566 | 1 | |
– Frame End Cover Gasket | 1 | ||
– Shaft End Cover Gasket | 1 | ||
– Cylinder Gasket | 32221384 | 3 | |
– L/P Head Gasket (Disc.) | 32153801 | 2 | |
– L/P Head Gasket (Inlet) | 32153827 | 1 | |
– H/P Upgrade Kit (E1) | 32257408 | -- | |
– L/P Head Gasket | 32153827 | 1 | |
– H/P Airhead Gasket | 1 | ||
– H/P Spacer Plate Gasket | 2 | ||
– H/P Valve Plate Gasket | 1 | ||
– Flat Washer | 32279408 | 6 | |
– Hex Cap Screw | 6 | ||
E | Air Filter Element | 32012957 | 1 |
Total | 190 |
