Description
Piston et tige 12 pouces IR 12 X 12 X 7 IHE NL, pièces de compresseur
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Piston et tige 12 pouces IR 12 X 12 X 7 IHE NL, pièces de compresseur - IR12x12x7IHE09 - Model for Ingersoll Rand Air Compressor Parts from India

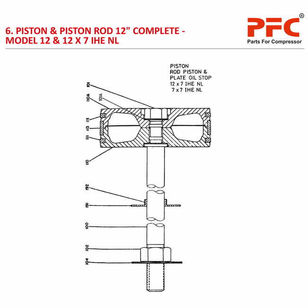

Piston & Rod 12"
SR.NO. | DESCRIPTION | PART NO. | QTY |
– | PISTON COMPLETE | HIN-8114T2 | – |
110 | PISTON HALF FRAME END | RIN-7972 | 1 |
110A | PISTON HALF OUTER END | RIN-7973 | 1 |
111 | RING PISTON | 50A18BA996 | 2 |
113 | RING WEARING | 42-HIN-5979 | 1 |
– | ROD PISTON COMPLETE | HIN-7707T | – |
100 | ROD PISTON | HIN-7707 | 1 |
101 | NUT PISTON | WIN-9554 | 1 |
102 | NUT CROSS HEAD | 2-8277B1 | 1 |
104 | WASHER STAR X HEAD | 2872B1 | 1 |
101A | WASHER PISTON NUT | WIN-9553 | 1 |
191 | PLATE OIL STOP | 7925C1 | 1 |
192 | CLAMP OIL STOP | 2-6665B1 | 1 |
122A235S20-IM |
